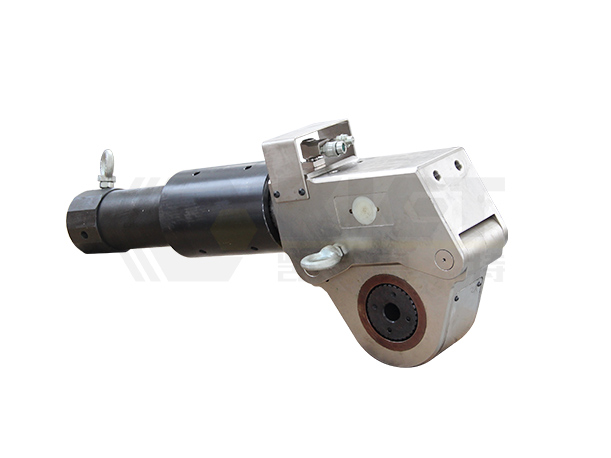

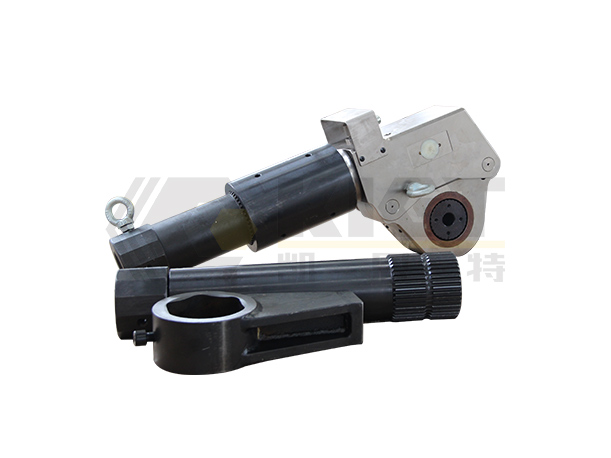

特性：可配用大規格套筒及超長套筒適應不同的工況要求使用。
用途：石油管道法蘭螺栓預緊。

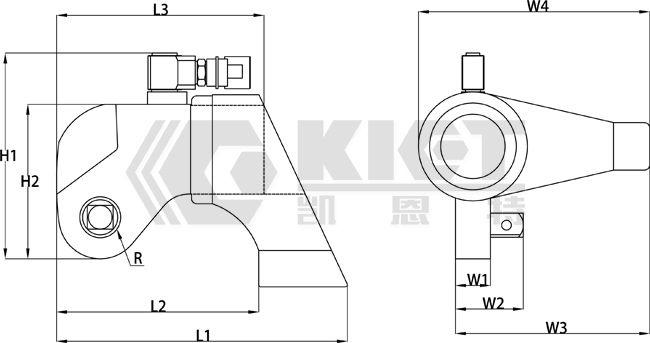

| 規格型號 | 輸出四方 | 最大力矩 (Nm) | 螺栓規格 | 螺母對邊 (mm) | L1 | L2 | L3 | H1 | H2 | W1 | W2 | W3 | W4 | R | 重量 (kg) |
| 外形尺寸(mm) | |||||||||||||||
| KET-TMCS-2 | 3/4" 或1" | 2106 | M16-M36 | 24-55 | 216 | 163 | 151 | 155 | 102 | 51 | 82 | 119 | 128 | 31 | 3.48 |
| KET-TMCS-3 | 1" | 4329 | M22-M48 | 32-75 | 234 | 144 | 175 | 178 | 125 | 60 | 92 | 130 | 159 | 36 | 5.44 |
| KET-TMCS-5 | 1-1/2" | 7123 | M24-M52 | 36-80 | 268 | 195 | 208 | 207 | 153 | 70 | 111 | 153 | 164 | 45 | 8.14 |
| KET-TMCS-8 | 1-1/2" | 10823 | M30-M64 | 46-95 | 352 | 267 | 244 | 230 | 176 | 77 | 118 | 204 | 213 | 52 | 12.15 |
| KET-TMCS-10 | 1-1/2" 或2" | 15195 | M36-M76 | 55-110 | 359 | 274 | 251 | 241 | 185 | 84 | 125 | 207 | 219 | 57 | 14.9 |
| KET-TMCS-15 | 2-1/2" | 21034 | M39-M85 | 60-120 | 434 | 332 | 300 | 269 | 212 | 98 | 160 | 255 | 267 | 64 | 20.1 |
| KET-TMCS-25 | 2-1/2" | 36365 | M48-M100 | 75-145 | 498 | 382 | 346 | 308 | 251 | 116 | 178 | 288 | 304 | 78 | 30.5 |
| KET-TMCS-35 | 3-1/2" | 50826 | M56-M110 | 85-155 | 587 | 444 | 414 | 367 | 297 | 132 | 231 | 344 | 349 | 94 | 50.6 |
| KET-TMCS-60 | 3-1/2" | 81766 | M76-M130 | 110-185 | 560 | 445 | 515 | 438 | 362 | 168 | 263 | 374 | 378 | 102 | 84.3 |
| KET-TMCS-80 | 3-1/2" | 110934 | M90-M140 | 130-200 | 586 | 466 | 540 | 461 | 385 | 172 | 268 | 396 | 403 | 107 | 123 |
